fsc-rt1505

FSC-RT1505 PCB Anti-Metal Tag is designed specifically for complex metal environments. It has the advantages of large reading distance, high sensitivity and easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, gestion de equipos medicos, logistics and etc.

lista de deseos Compartir enlace
veloz veloz veloz
$0.50
  • Powered by Impinj M730 UHF RFID chip for reliable, high-performance tag identification
  • Operates at 920–925 MHz, compliant with ISO 18000-6C and EPC Class-1 Gen2 (C1G2) protocolos
  • Supports read and write operations with -15 dBm sensitivity for stable communication in demanding environments
  • 128-bit EPC memory and 96-bit TID for unique identification and traceability
  • Equipped with 32-bit Access Password and 32-bit Kill Password for enhanced data security
  • Arriba a 10 years of data retention and 100,000 write cycles for long-term deployment
  • Ultra-compact design: 15 milímetros × 5 milímetros × 2.5 mm, weighing only 2 gramo
  • PCB construction with 3M adhesive backing for quick and secure surface mounting
  • IP65-rated enclosure for dust and water resistance in industrial and outdoor applications
  • Wide operating temperature range from -20°C to +85°C for harsh environment use
Artículo Especificación
Frecuencia 920 – 925 megahercio
Chip Impinj M730
Chip Protocol EPC Clase 1 Gen2
Sensibilidad -15 dbm
Protocol Supported ISO 18000-6C, EPCglobal C1G2
Función Leer / Escribir
EPC 128-poco
User Memory 0 bits
TIEMPO 96 bits
Access Password 32 bits
Kill Password 32 bits
Data Retention 10 años
Write Endurance 100,000 cycles
Tamaño 15 milímetros × 5 milímetros × 2.5 mm
Shell Material tarjeta de circuito impreso, 3adhesivo m
Color Negro
Peso 2 gramo
Método de instalación 3adhesivo m
Protection Class IP65
Temperatura de funcionamiento -20° C a +85 ° C

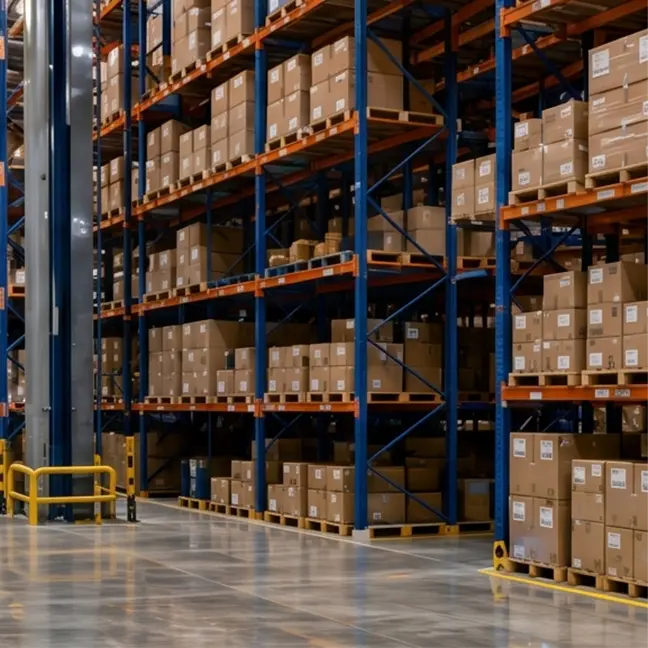

Logistics and warehousing management
Logistics and warehousing management

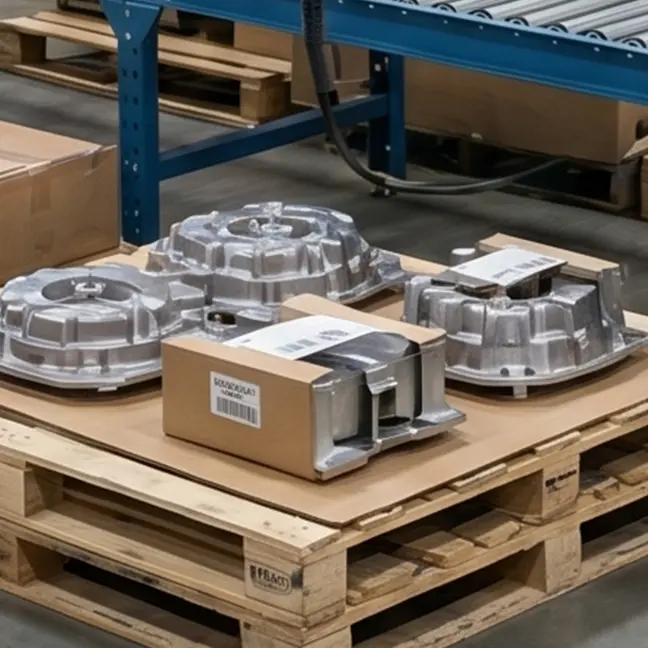

Metal asset management
Metal asset management

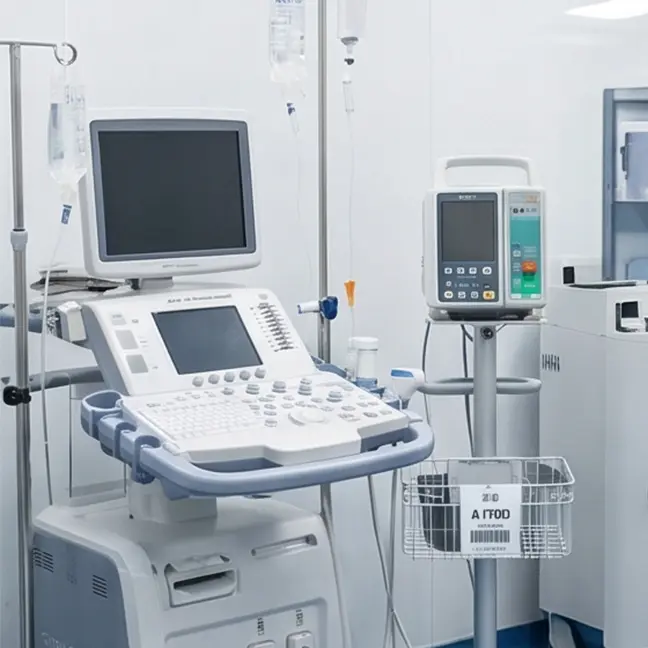

medical equipment
medical equipment
