TI CC2745R10 Automotive Grade BLE 6.0 Module with Channel Sounding
In the wave of automotive intelligence, applications such as digital keys, passive entry, battery management systems (BMS), and in-vehicle diagnostics demand wireless connectivity with high reliability, Độ trễ thấp, precise positioning, and ultra-low power consumption. Ordinary consumer-grade Bluetooth modules can no longer meet the stringent requirements of automotive-grade scenarios.
Feasycom introduces the FSC-BT2004TV automotive grade BLE module, based on the TI CC2745R10-Q1 chipset. It supports the Bluetooth 6.0 core specification and integrates Channel Sounding technology, delivering both precision ranging and secure connectivity for digital car keys, PEPS, BMS, và hơn thế nữa.
Automotive-Grade Certification
The core chipset of FSC-BT2004TV is T CC2745R10, which is AEC-0100 Grade 2 qualified, and the module is designed to meet automotive-grade standards.
- Wide temperature range: -40oC đến +85oC
- High ESD protection: HBM ±2000V (except ANT pin), ANT pin ±1000V
- Ultra-low standby current: ≤3μA (standby), ≤160nA (Deep sleep) – ideal for coin-cell powered car keys
For Tier 1 suppliers and OEMs, choosing an automotive-grade module reduces project risk and shortens DV/PV validation cycles.
Bluetooth 6.0
The breakthrough of Bluetooth 6.0 is Channel Sounding, a high-precision distance measurement technology based on phase-based ranging. FSC-BT2004TV natively supports this feature, bringing two key benefits:
Centimeter-level positioning accuracy: Unlike traditional RSSI ranging, Channel Sounding is more resilient to multipath interference, achieving sub-meter distance estimation. This enables the core experience of digital keys: “unlock as you approach, lock as you leave”.
Relay attack protection: The encrypted round-trip ranging protocol effectively defends against man-in-the-middle attacks such as signal amplifiers, meeting CCC security requirements.
Balancing Low Power and High Performance
FSC-BT2004TV strikes an ideal balance between power consumption and processing capability:
| Parameter | Typical Value |
| Core | Arm Cortex-M33, 96MHz |
| RX current | ≤6.1mA |
| TX current @0dBm | ≤7.7mA |
| TX current @10dBm | ≤24.5mA |
| Active mode (MCU@96MHz) | 6.8MA |
| Deep sleep | ≤160nA |
Rich Interfaces for Flexible Integration

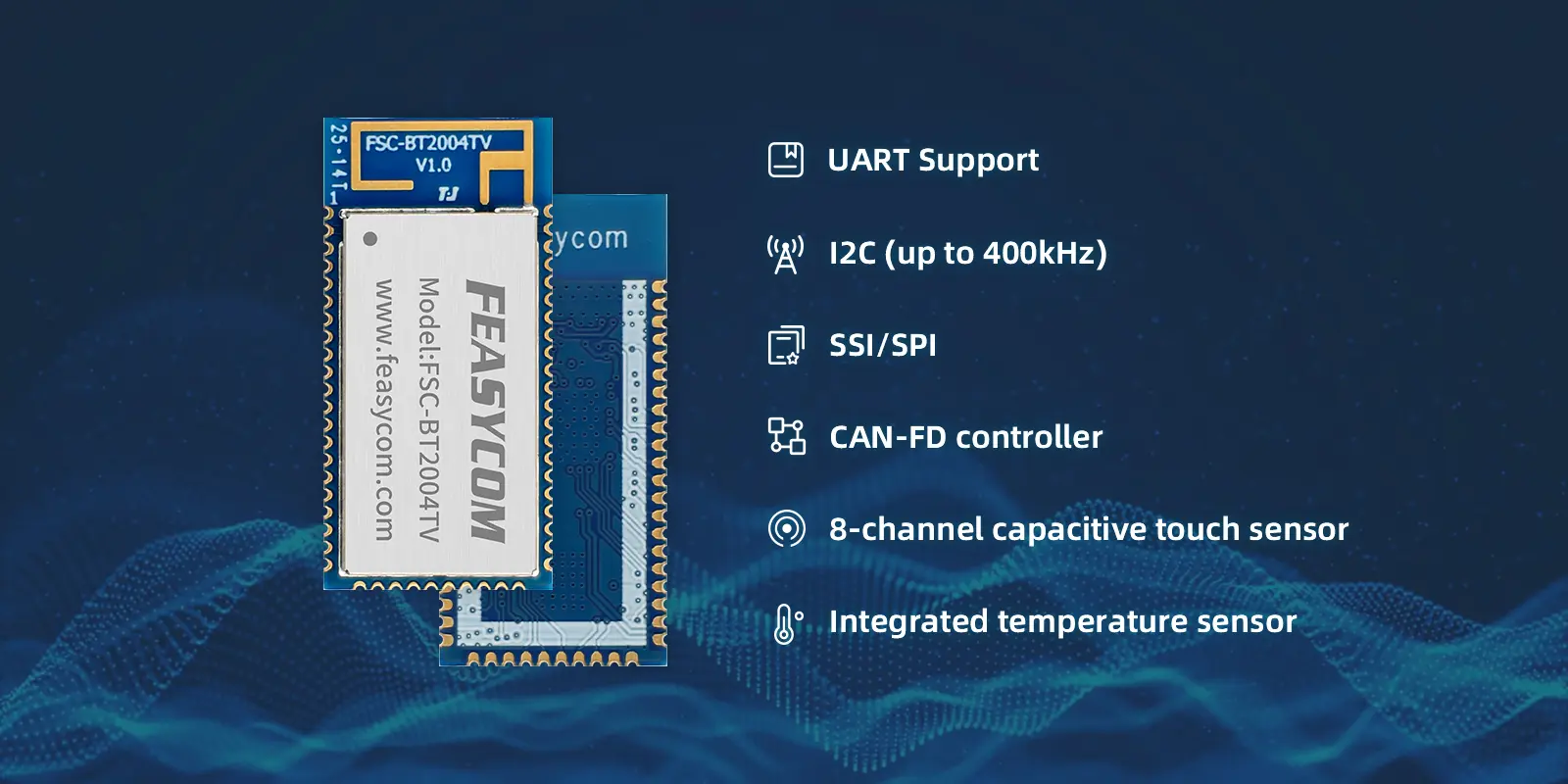

The module comes in a 13mm × 26.9mm stamp-hole package, providing up to 23 GPIOs and:
- Uart (default 115200bps, up to 921600bps)
- I2c (up to 400kHz)
- SSI/SPI (master/slave, up to 4MHz)
- CAN-FD controller (ISO16845-1:2016 certified)
- 8-channel capacitive touch sensor
- Cảm biến nhiệt độ tích hợp
Whether used as a standalone Bluetooth MCU or as a co-processor in an automotive system, it offers flexible adaptation.
- Key Application Scenarios
| Domain | Specific Applications |
| Automotive Digital Key | Phone-as-a-Key (PaaK), PEPS, RKE, car-sharing authorization |
| In-vehicle Diagnostics & Configuration | OBD Bluetooth adapters, aftermarket diagnostic tools |
| Smart Cockpit Peripherals | Bluetooth game controllers, rear-seat entertainment headphones, in-car beacons |
| IoT công nghiệp | Asset tracking, AGV dispatching, automotive-grade sensor nodes |
Phần kết luận: The Benchmark Choice for Automotive-Grade BLE Module
The FSC-BT2004TV is more than a Bluetooth Module, it is a complete automotive-grade wireless connectivity solution. It integrates the latest Bluetooth 6.0 giao thức, high-precision Channel Sounding ranging, dual-antenna robustness, and the ultra-low-power architecture of TI CC2745 into a single module. It provides a production-ready, highly reliable, and security-compliant hardware foundation for automotive front-loading applications.
Dành cho các kỹ sư và chuyên gia mua sắm đang phát triển khóa kỹ thuật số, BMS không dây, hoặc các sản phẩm kết nối trên xe thế hệ tiếp theo, FSC-BT2004TV xứng đáng có một vị trí trong danh sách lựa chọn của bạn.
