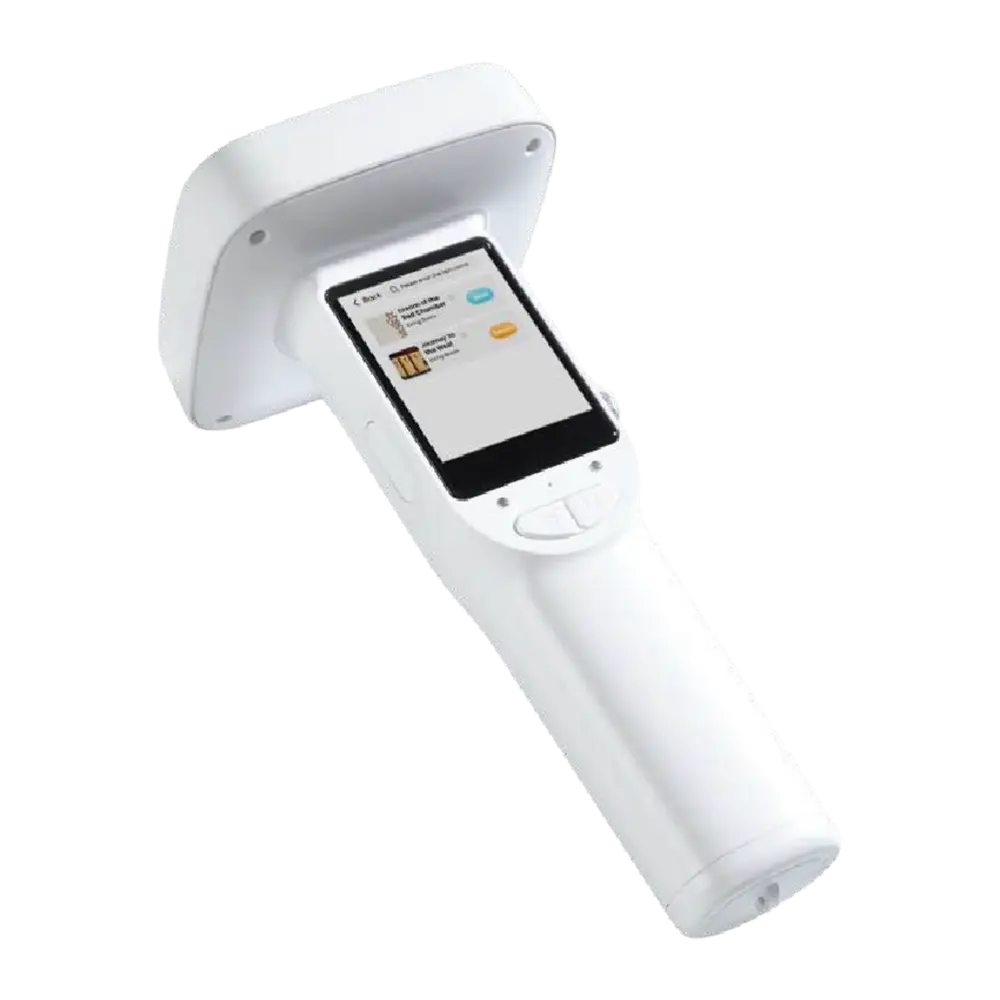

FSC-H02

The FSC-H02 is a multifunctional UHF RFID Inventory Handheld Terminal, compliant with ISO 18000-6C / EPC C1G2 / Gen2X protocols. It supports China 920–925MHz, FCC 902–928MHz, and ETSI 865–868MHz frequency bands, with adjustable RF output power from 0–33dBm.



The device provides fast tag locating capability and supports Bluetooth, Wi-fi, and 4G wireless communication. It can connect to mobile phones or tablets via Bluetooth, or exchange data with backend systems over Wi-Fi/4G. It offers an optional Android 10 АС, a 2MP camera, and both 1D/2D barcode scanning.



Compared with traditional handheld UHF readers, the FSC-H02 is lightweight and provides long-range reading, rapid tag locating, and high anti-interference performance, making it suitable for libraries, лагістыка, warehousing, кіраванне актывамі, retail, і многае іншае.

пажаданне Падзяліцца спасылкай
Wechat Wechat Wechat
$299.00
  • Built-in circularly polarized antenna with adjustable power for both long-range reading and close-range tag pinpointing—ideal for book/library, лагістыка, and retail single-item search.
  • Built-in orientation sensor with patented algorithm for rapid direction guidance and front-facing vibration feedback.
  • Optional large storage capacity, supporting over 50,000 tag records.
  • Supports standalone operation or Bluetooth collaboration with smart devices.
  • Direct Wi-Fi/4G connectivity for backend data transmission.
  • Supports UHF RFID + optional 1D/2D barcode scanning.
  • Uses industry-leading high-performance RF chipset for superior reading speed, дакладнасць, and anti-interference capability.
  • Custom-designed housing; ergonomic UI.
  • Supports audio prompts + vibration feedback.
  • Supports near-field issuing mode with AI algorithm to prevent mis-issuing tags.
  • Optional high-capacity battery pack, up to ≥10000mAh.
  • Dual-battery design, supporting hot-swap without power-off.
Экалагічныя Specifications
Прадмет Спецыфікацыя
Operating

Тэмпература

 -20℃～+50℃
Захоўванне

Тэмпература

 -40℃～+70℃
Operating Humidity 10%–95% RH (без кандэнсацыі)
Main Функцыі
Прадмет Спецыфікацыя
Operating System Андроід 10 (неабавязковы)
Працэсар Quad-core 64-bit ARM Cortex-A53, 2.0GHZ;

Optional 2GB RAM + 16GB ROM
Air Protocol EPC C1G2 / ISO18000-6C / Gen2X
Wireless Communication Bluetooth 2.1+EDR/3.0/4.1LE/4.2BLE Wi-Fi 2.4/5GHz (802.11A/B/G/N/)

4G LTE-FDD / LTE-TDD / WCDMA / GSM/EDGE
Positioning GPS + BDS
Camera 2MP camera
Charging & Абнаўленне прашыўкі

Port

 USB Type-C
Ёмістасць батарэі Main: 5000мАг / Secondary: 200мАг
Operating Mode Фіксаваная частата / Frequency hopping
Рысы Dense-tag reading, OTA firmware upgrade, RSSI support



Rfid Прадукцыйнасць
Operating

Частата

 ETSI 865–868MHz / China 920–925MHz / FCC 902–928MHz
ВЧ выхадная магутнасць Up to 33dBm
Power Adjustment 1 ДБ крок



Channel Bandwidth <200 кГц
Антэна Circularly Polarized
Read Range 0–15 m (dependent on power, antenna, tag & environment)
Write Range 0–10 m (dependent on conditions)
Tag Read Rate >500 tags/s
Retail store management, hotel management
Retail store management, hotel management

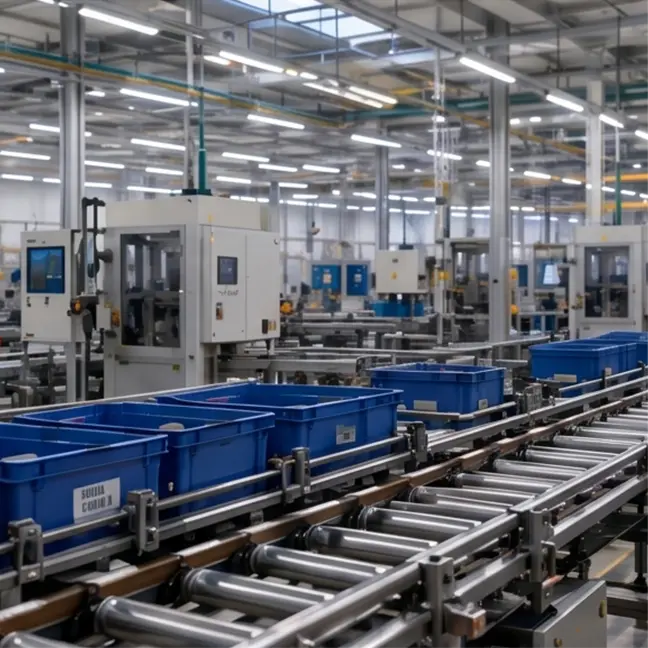

Supply chain management and production automation
Supply chain management and production automation
Asset access management
Asset access management

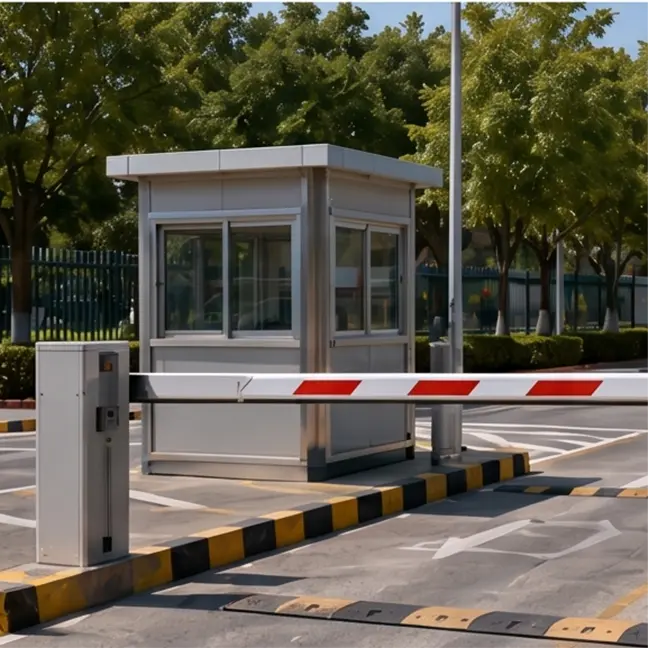

Intelligent vehicle access control,
Intelligent vehicle access control,
Library and Archives Management
Library and Archives Management

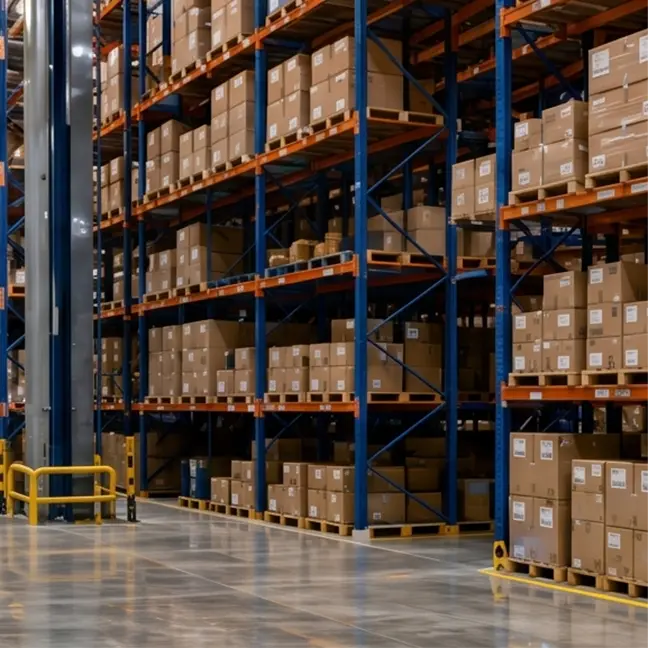

Logistics and warehousing management
Logistics and warehousing management
