BLE Module Selection Guide for Diverse Application Scenarios

In today’s world where smart devices are ubiquitous, stable and efficient wireless connectivity is their lifeline. انرژی کم بلوتوث (خون) فناوری, with its unique advantages, has undoubtedly become the foundational connectivity cornerstone in the Internet of Things (اینترنت اشیا) field. Whether it’s the smart key in your pocket or the thermostat in your home, BLE is likely working behind the scenes. Faced with a multitude of different ماژول BLE models and specifications, how can one cut through the parameter clutter and make precise choices? This article will systematically deconstruct BLE technology, clarify scenario requirements, and ultimately provide a clear, rational selection path.

1. را “Default Wireless Connection” for IoT Devices

The success of BLE stems from its precise alignment with the core demands of IoT devices: achieving stable, secure, and easily developable wireless connections at extremely low power and cost. It is not simply a scaled-down version of traditional Bluetooth but a communication protocol tailor-made for massive numbers of nodes like sensors, پوشیدنی ها, and smart home devices, enabling device battery life measured in سال and direct connection via smartphones.

1. Key Parameters and Protocol Evolution

2.1 Protocol Evolution: From Connectivity to Enablement

Each upgrade of the BLE version marks a leap in its capabilities, evolving from achieving basic wireless connectivity to becoming an intelligent connectivity platform adaptable to complex scenarios.

2.2 Key Parameters:

• RF Performance: Communication range is defined by both transmit power (determines signal strength) and receive sensitivity (determines signal capture ability; lower values are better). High sensitivity is key to increasing range and reducing system power consumption.
• Antenna Selection: Integrated antennas (PCB/ceramic) favor miniaturization and cost control; external antennas (via IPEX connector) provide optimal, most stable signal performance in complex environments (metal obstruction, strong interference).
• Reliability & مصرف برق: An industrial-grade wide temperature range (-40° C ~ +85 ° C) is the cornerstone for outdoor/automotive applications; average operating current and sleep current directly determine the battery life of devices.

III. Diverse Scenarios for BLE Applications

Different application scenarios impose distinct combinations of requirements on BLE technology.

1. الکترونیک خودرو (به عنوان مثال, Digital Keys)

• Core Demand: Absolute reliability, utmost security, harsh environments.
• Technical Focus: Core chip must comply with AEC-Q100 and other automotive standards; must support external antenna to handle metallic environments; communication protocol requires high-grade security encryption.

2. خانه هوشمند & Matter Ecosystem

• Core Demand: Stable networking, seamless interaction, ecosystem integration.
• Technical Focus: Excellent anti-interference and multi-device coexistence capabilities; efficient Bluetooth provisioning support for Matter and other protocols; rich interfaces (به عنوان مثال, i²c, PWM) to connect various sensors and actuators.

3. لوازم الکترونیکی مصرف کننده (به عنوان مثال, پوشیدنی)

• Core Demand: Miniaturization, long battery life, low cost.
• Technical Focus: Pursuit of millimeter-level packaging and nA-level sleep current; optimized protocol stack to shorten RF activity time and maximize battery life.

4. Industrial IoT (به عنوان مثال, Remote Sensing)

• Core Demand: Long range, high reliability, anti-interference.
• Technical Focus: Combination of high transmit power and high receive sensitivity to extend coverage; external antenna is essential for reliable communication in metal enclosures or complex electromagnetic environments.

1. From Requirements to Product Selection Reference

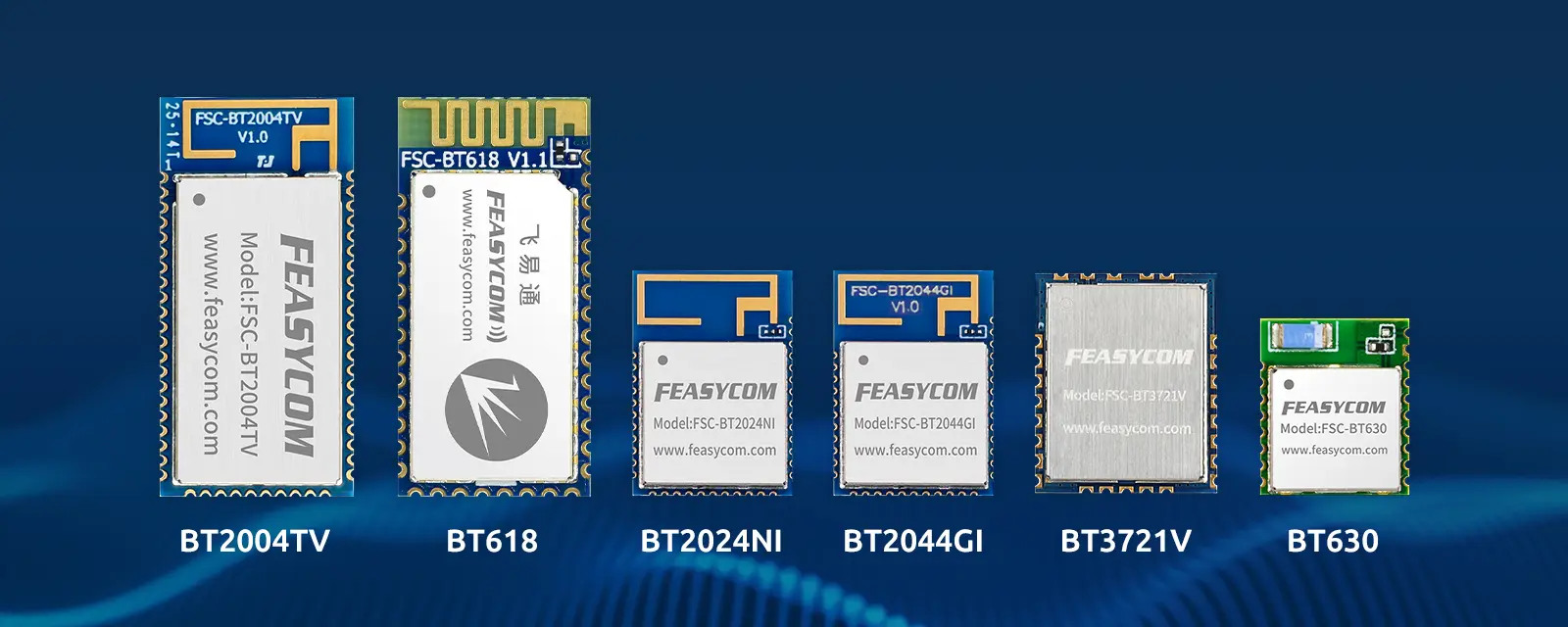

Based on the above analysis, we can map scenario requirements to the characteristics of some of our ماژول BLE, providing a direct reference for your selection.
